Opis izdelka

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X670
POMNILNIK:
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function
GRAFIKA: preko APU, če le-ta podpira
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
MREŽNA KARTICA: Intel 2.5Gb Ethernet ASUS LANGuard
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

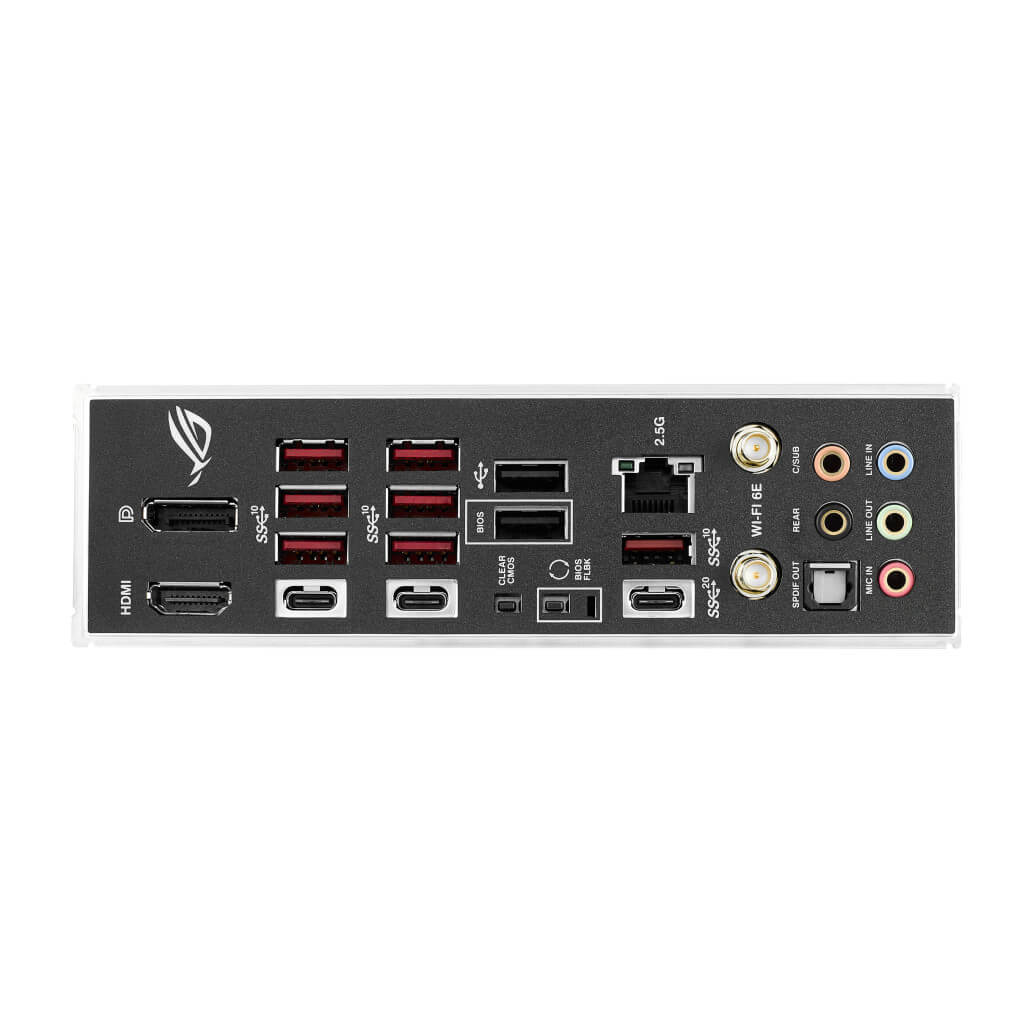

ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2×2 port (1 x Type-C)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-f-gaming-wifi-model/
