Opis izdelka

PODNOŽJE: INTEL LGA1700
ZA PROCESORJE:  Intel 12/13/14th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z790 Express
POMNILNIK:
4 x DDR5 (8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz) do skupno 192GB kapacitete, dual channel in Extreme Memory Profile (XMP) OptiMem II podpora, ASUS Enhanced Memory Profile II (AEMP II)
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
MREŽNA KARTICA: Intel 2.5GbE LAN chip ASUS LANGuard + 2×2 Intel Wi-Fi 7 supporting 2.4/5/6 GHz + BLUETOOTH 5.4
ZVOČNA KARTICA: ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over voltage jumper
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin system panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt (USB4) header

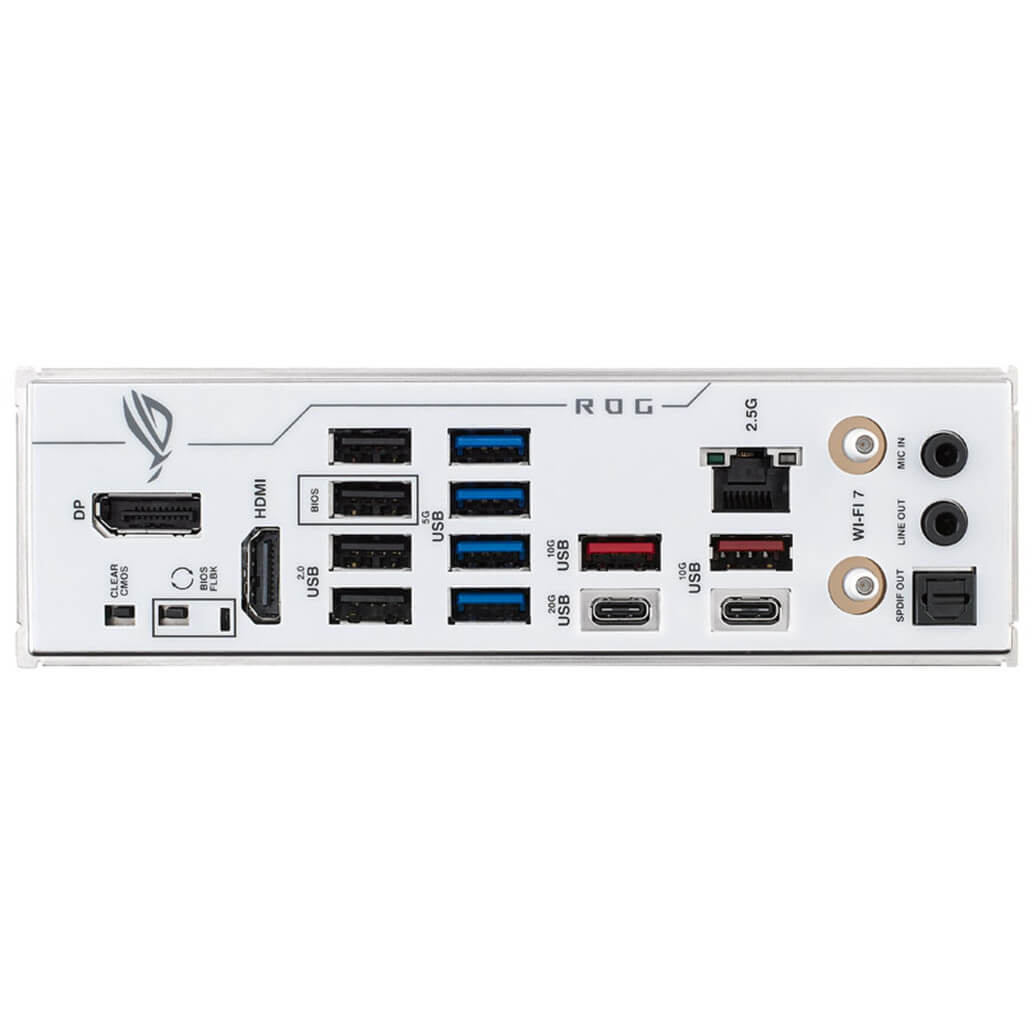

ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
– Support: up to 30W charging
– Support: USB power delivery notification with power output wattage display
– Output: 5V/9V max. 3A, 12V max 2.5A
– Compatible with PD3.0
Software Features
ROG Exclusive Software
– ROG CPU-Z
– DTS Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
– Sonic Studio
– Two-Way AI Noise Cancelation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyASUS
USB Wattage Watcher
Intel Unison
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
MemTest86

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-ii/
